How Ductless Systems Work Without Losing Their Cool

Ductless Mini Split Systems Explained: What Every Sacramento Homeowner Should Know

Ductless mini split systems explained simply: they are heating and cooling systems that work without any ductwork, using an outdoor unit connected to one or more indoor air handlers through a small set of refrigerant lines. Each indoor unit controls the temperature in its own zone, independently from the rest of the home.

Here's a quick breakdown:

• What it is: A compact HVAC system with an outdoor compressor and one or more indoor air handlers
• How it works: Refrigerant lines transfer heat between indoors and outdoors — no ducts needed
• Main benefit: Room-by-room temperature control with up to 20–30% better energy efficiency than ducted systems
• Best for: Homes without existing ductwork, room additions, garages, sunrooms, and whole-home zoning
• Installation: Requires only a 3-inch hole in the wall and can be completed in as little as one day

If you've ever had a room in your Sacramento home that's always too hot in summer or too cold in winter, you already understand the problem these systems solve. Traditional central air relies on a network of ducts to push conditioned air through your home — and those ducts can leak, restrict airflow, and waste more than 30% of your energy. Ductless mini-splits cut out that energy loss entirely, delivering conditioned air right where you need it.

As one HVAC professional put it, the best way to think about a ductless mini-split is as a spot conditioning system — one that gives homeowners the ability to control the temperature in individual rooms, running only what's needed rather than conditioning the entire home at once.

Sacramento's hot summers and cool winters make year-round comfort a real priority. Mini-splits handle both heating and cooling in a single system, making them one of the most flexible and efficient HVAC options available today.

Ductless Mini Split Systems Explained: The Core Components

To understand why these systems are so effective, we first need to look at what’s actually inside them. Unlike a massive central furnace or a bulky window unit, a mini-split is divided into two primary sections: one that stays outside and one (or more) that lives inside your home.

The system relies on three main physical parts to move comfort from point A to point B:

1. The Outdoor Condenser/Compressor: This is the "muscle" of the system. It sits outside your home and handles the heavy lifting of compressing refrigerant to move heat.

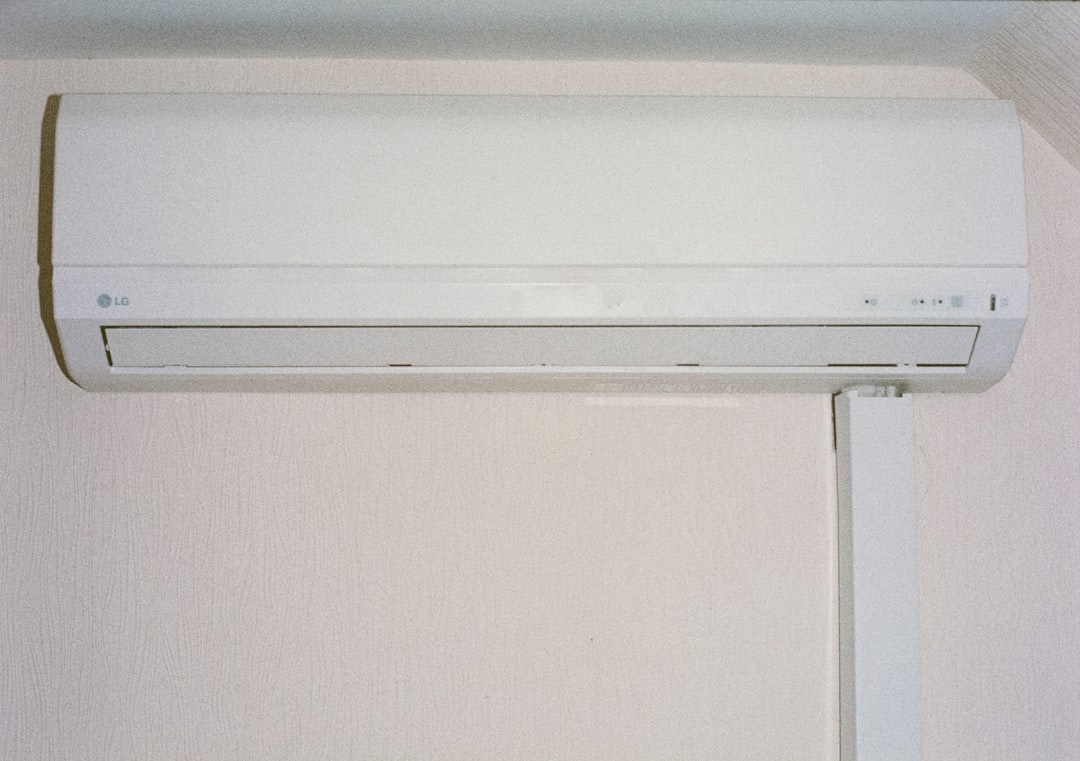

2. The Indoor Air Handler: This is the sleek unit mounted on your wall or ceiling. It contains a fan and an evaporator coil to distribute conditioned air directly into the room.
3. The Conduit: This is the "umbilical cord" of the system. It’s a bundle that houses the power cable, refrigerant lines, and a condensate drain.

What makes this setup so for Sacramento homes—especially older ones in Land Park or Midtown—is that these components connect through a tiny 3-inch hole in the exterior wall. There’s no need to tear up your ceiling or lose closet space to bulky metal ducts. For more details on how we can integrate these into your home, check out our mini-split services.

How a Mini-Split System Works

The "magic" of ductless mini split systems explained boils down to the science of heat transfer. These systems don't actually create cold air; they move heat from where you don't want it to where it can be released.

In the summer, the indoor unit's evaporator coils absorb heat from your room's air. This heat is carried away by the refrigerant through the lines to the outdoor unit, where the compressor releases it into the Sacramento heat. In the winter, the process reverses: the system extracts heat from the outdoor air (yes, even when it’s cold!) and brings it inside.

The real secret weapon here is inverter technology. While traditional AC units are either "all on" or "all off"—which leads to those annoying temperature swings—a mini-split uses a variable-speed compressor. It’s like cruise control for your comfort. It slows down or speeds up just enough to maintain a steady temperature, saving a massive amount of energy in the process.

Understanding Ductless Mini Split Systems Explained for Multi-Zone Use

One of the most common questions we hear in Citrus Heights and Elk Grove is: "Do I need a separate outdoor unit for every room?" The answer is no!

Through multi-zone technology, a single outdoor compressor can power up to 8 indoor units. This allows for incredible flexibility:

• You can have a wall-mounted unit in the master bedroom.
• A ceiling cassette in the open-plan living room.
• A floor-standing unit in a converted garage or workshop.

Because each indoor unit has its own independent thermostat, you can stop the "thermostat wars." If one person wants their bedroom at 68 degrees while the living room stays at 74, a multi-zone mini-split makes it happen effortlessly. With line sets that can reach up to 50 feet away from the outdoor unit, we can place the equipment exactly where it makes the most sense for your home's layout.

Key Advantages of Ductless Technology

When comparing ductless mini split systems explained to traditional central air, the differences are striking. Central air is great for many, but it has inherent flaws that ductless technology was specifically designed to fix.

The lack of ductwork is the biggest win for your wallet. Industry data shows that ductwork in central forced-air systems can account for more than 30% of energy consumption due to leaks and thermal loss. By delivering air directly into the room, mini-splits avoid this waste entirely. To learn more about how this applies to your specific home layout, visit our mini-split page.

Energy Efficiency and Performance

Efficiency isn't just a buzzword; it’s a measurable stat. Most mini-split systems are 20% to 30% more efficient than ducted systems, and high-end models can reduce energy consumption by up to 40% over a conventional system.

In the HVAC world, we look at SEER (Seasonal Energy Efficiency Ratio) and HSPF (Heating Seasonal Performance Factor). Many ductless systems boast SEER ratings that far exceed standard central units. Because they are all-electric and use highly efficient heat pump technology, they don't burn fossil fuels. This eco-friendly design often qualifies homeowners for significant tax credits and rebates, especially when choosing ENERGY STAR rated equipment.

Sizing Your Ductless Mini Split Systems Explained

Getting the size right is the difference between a system that lasts 20 years and one that breaks down in five. In the HVAC industry, we measure cooling capacity in BTUs (British Thermal Units).

• 12,000 BTU units are generally suitable for rooms ranging from 400 to 650 square feet.
• 18,000 BTU units often cover 600 to 1,000 square feet.

However, it’s not just about square footage. Our technicians perform a "load calculation" that considers your ceiling height, window placement, and insulation quality. If a unit is too small, it will run constantly and wear out. If it’s too large, it will "short-cycle," turning on and off so quickly that it never properly dehumidifies the air, leaving your Sacramento home feeling clammy.

Installation and Maintenance Requirements

One of the reasons mini-splits are so popular in places like Roseville and Folsom is the speed of installation. Because we aren't tearing out drywall to run massive ducts, a standard single-zone installation can often be completed and operational in as little as one day.

Professional Installation Process

While you might see DIY kits online, professional installation is non-negotiable for a system that actually works. A licensed technician from Bronco Heating and Air ensures that the refrigerant lines are properly charged and vacuum-sealed, the electrical connections meet Sacramento building codes, and the condensate drain is pitched correctly to prevent water damage.

We also offer various mounting options to fit your home’s aesthetic:

• Wall-Mounted: The most common and cost-effective.
• Ceiling Cassette: Recessed into the ceiling for a flush, "invisible" look.
• Floor-Standing: Great for attics or rooms with low, slanted ceilings.
• Slim Duct: A hybrid option that uses very short, hidden ducts for a minimalist appearance.

Essential Maintenance for Peak Performance

A high-quality ductless mini-split can reliably heat and cool your home for 15 to 20 years, but only if you show it a little love. Fortunately, maintenance is simpler than with central air.

The Homeowner's List:

• Filter Cleaning: This is the most important task. You should rinse the mesh filters in your indoor units every month (more often if you have pets in Citrus Heights!).
• Clear the Outdoor Unit: Keep leaves, dirt, and Sacramento Valley dust away from the outdoor condenser to ensure proper airflow.

The Professional's List:

• Annual Tune-ups: Once a year, a technician should inspect the refrigerant levels, clean the internal coils, and ensure the condensate line is clear of any mold or debris. This "airflow optimization" keeps your efficiency high and your energy bills low.

Frequently Asked Questions about Ductless Mini Split Systems

Can mini-splits provide both heating and cooling?

Absolutely. Most modern mini-splits use heat pump technology. In the summer, they act as an air conditioner. In the winter, they run in a "reverse cycle" to bring heat indoors. Some advanced cold-climate models can maintain 80% heating capacity even when outdoor temperatures drop to -22°F—far colder than any winter night we see in Northern California! Conversely, they can cool at 100% capacity even when it hits 130°F outside.

How do mini-splits differ from heat pumps?

This is a bit of a trick question! Most residential mini-splits are heat pumps. The difference is the "delivery method." A traditional heat pump usually connects to a central duct system. A mini-split heat pump is ductless, delivering air directly into the room. This makes them much easier to retrofit into older homes or use in specific areas like a garage or a new sunroom addition.

Are ductless systems quiet?

Yes, they are incredibly quiet. In fact, that’s one of the first things homeowners in Elk Grove notice. The noisy part of the system—the compressor—stays outside. The indoor units are "whisper-quiet," often operating as low as 20 to 25 decibels (which is quieter than a library). Even the outdoor units are engineered for silence, with many operating around 46 decibels, which is about the volume of a normal conversation.

Conclusion

Whether you are looking to fix a "hot spot" in your home, convert your garage into a comfortable workspace, or completely overhaul your home's efficiency, ductless mini split systems explained offer a modern solution that central air simply can't match. They provide the precision of zoned control, the savings of high-efficiency technology, and the convenience of a one-day installation.

At Bronco Heating and Air, we pride ourselves on being Sacramento’s HVAC experts. Our licensed, professional technicians are dedicated to providing cost-effective comfort tailored to the unique needs of our local community—from Davis to El Dorado Hills and everywhere in between.

Ready to see how a ductless system can transform your home's comfort? Schedule your mini-split consultation with us today and start experiencing the quiet, efficient comfort you deserve.
